Flexfab 1070-0003 Charge Air Cooler Hose-Heavy Wall


Flexfab Charge Air Cooler Hose

SKU 1070-0003 Categories ,

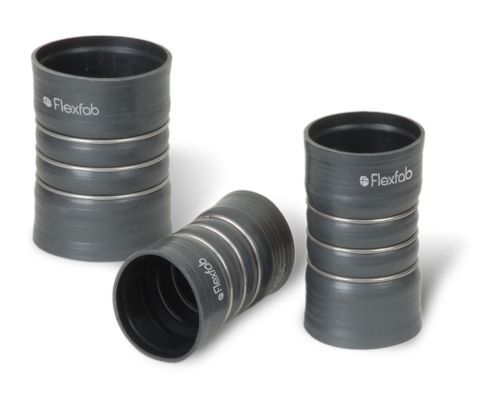

Flexfab 10070-0003 Heavy Wall Charge Air Cooler Hose

Construction:  4-Ply Heavy Duty Silicone Coated Meta-Aramid Fabric with Heavy Duty Stainless Steel Pressure Retention Rings.
High temperature fluorocarbon elastomeric liner.
Temperature range is -65°F to +500°F.
Wall thickness is .117″.
Designed to meet the EPA 2007 requirements for reduced emissions.
Used on diesel engines to deliver pressurized intake air to the charge air intercooler and intake manifold.
Fluorocarbon lining eliminates closed crankcase vapors from permeating through the sidewall of the intercooler connection bellows at 500°F.

4″ I.D 4.23″ O.D 6″ Long, 70 PSI Maximum operating pressure, 2 Hump-3 Stainless Steel Rings.

For more specific information, refer to the Flexfab catalog.

Additional information

Weight 1 lbs
Dimensions 7 × 5 × 5 in
