Flexfab 5508-225 Coolant Hose Wire Reinforced


Flexfab Coolant Hose Wire Reinforced

SKU 5508-225 Categories ,

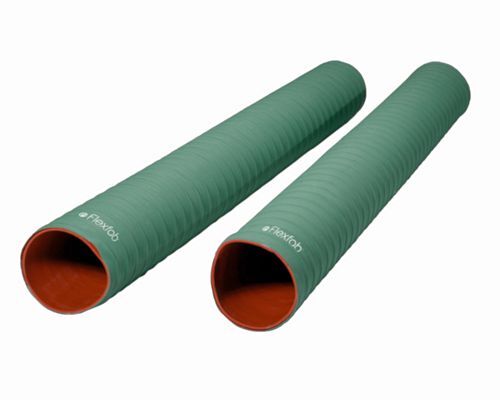

Flexfab 5508-225 Wire Reinforced Coolant Hose

Green cover silicone hose with 2 plies of Polyester Reinforcement, with Helical Wire
Meets or exceeds the operating requirements of SAE J20 R2 Class A
Temperature range is -65°F to +350°F.
Wall thickness at hose ends exclusive of wire gauge .130”/.180”
Working pressure is 1/3 of the burst pressure
Negative pressure is -10 PSI
For heavy duty pressure connections in hostile engine environments
Resists hardening, cracking, cold leaks, aging, and many chemicals
For connections utilizing high vacuum and/or some forced curvature
Ideal for extreme temperature and various pressure ranges where high performance levels are required

2.25″ I.D. 2.67″ O.D., 400 PSI Burst pressure. Three foot length. For more specific information, refer to the Flexfab catalog.

Additional information

Weight 2 lbs
Dimensions 12 × 4 × 4 in
