Description

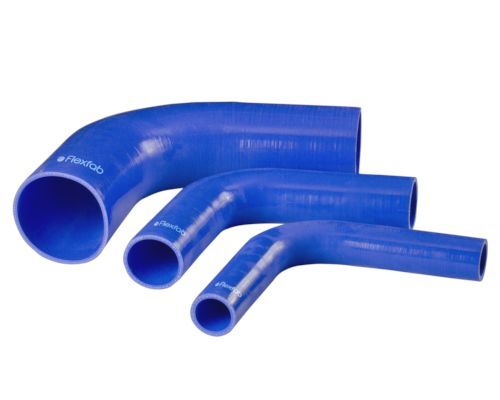

Flexfab 90° 3″ I.D. Silicone Elbow

Serves a dual purpose because it can be used as a coolant hose or as a charge air connector (CAC)
Construction:
• Silicone hose with 3-plies of Meta-Aramid Reinforcement
Specifications:
Meets or exceeds the operating requirements of SAE J20 R1 Class A
Meets or exceeds the operating requirements of TMC RP303B Class I Grade II
Temperature range is -65°F to +500°F
• 3″ I.D. Each leg is 7.5″ long
Applications:
• For heavy duty pressure connections in hostile engine environments
• Resists hardening, cracking, cold leaks, aging, and many chemicals
• Ideal for extreme temperature and various pressure ranges where high performance levels are required
• For connection between the turbocharger and the engine
• Resists chemicals, steam, ozone, coolants, and aging conditions normally found in the engine environment

For more specific information, refer to the Flexfab catalog.
