TL;DR
- Diesel engines work by compressing air until it is hot enough to ignite the fuel.
- The diesel engine working process consists of four strokes: intake, compression, power, and exhaust.
- Diesel engines are more fuel-efficient than petrol engines due to their higher compression ratios.
- These engines are widely used in trucks, buses, ships, generators, and heavy machinery.
- Understanding diesel engines helps you maintain them better and make smarter vehicle choices.
Why Have Diesel Engines Powered the World for Over a Century?
Have you ever wondered why trucks, buses, and heavy equipment all seem to run on diesel? For more than a century, diesel engines have powered the world’s transportation and industry. Apart from being durable and efficient, they are remarkably powerful. However, many people who are not mechanically inclined are stumped by how diesel engines work.
This guide breaks down the diesel engine working process in plain terms, from the moment air enters the cylinder to the instant power reaches the wheels. Understanding how these engines work makes you a better operator, a smarter buyer, and a more informed owner.
Diesel Components Inc. has been working hands-on with diesel fuel systems, injectors, and engine components since 1977. As an authorized repair facility for Garrett AiResearch, Garrett Turbo, and Schwitzer, and a trusted supplier to the heavy-duty on and off-highway market across Minneapolis, St. Paul, and beyond, we bring real bench experience to everything we explain here.
What Is the Main Difference Between Diesel and Petrol Engines?
To get the most out of this explanation of diesel engines, it helps to start with what sets diesel apart from petrol at a fundamental level. Both are internal combustion engines, meaning both burn fuel inside cylinders to generate power. The key difference lies in how that combustion is triggered.
Petrol engines depend on a spark plug to ignite a fuel and air mixture at precisely the right moment. Diesel engines need no such trigger. One of the most important diesel engine basics is that air alone, compressed to a fraction of its original volume, generates enough heat to ignite diesel fuel on contact. This is called compression ignition, and it defines the entire diesel engine operating process.
Higher compression ratios mean more energy extracted from every unit of fuel, which is why diesel engines consistently outperform petrol engines on both fuel economy and torque.
What Is the Working Process of a Four-Stroke Diesel Engine?
Modern diesel engines mostly operate on a four-stroke cycle, where each stroke refers to one movement of the piston inside the cylinder. Here is a step-by-step explanation of each stroke:
Stroke 1: Intake
The cycle begins with the piston moving downward inside the cylinder. Its downward movement creates a vacuum that draws fresh air through the intake valve. Diesel engines draw in only air during this stage, and no fuel is mixed in yet.
Stroke 2: Compression
The piston moves back upward once the intake valve closes, which compresses the trapped air into a much smaller space. Diesel engines compress air at ratios between 14:1 and 25:1, which is much higher than the 8:1 to 12:1 ratios of petrol engines. With this extreme compression, the air temperature rises to around 700–900°C. The air can now ignite fuel on contact.
Stroke 3: Power (Combustion)
At the top of the compression stroke, the fuel injector sprays a precise mist of diesel into the superheated air. This results in almost instant ignition of the fuel. No spark plug is needed. The resulting explosion forces the piston downward with considerable force. This is the power stroke, the point at which heat energy is converted into mechanical motion and the heart of how diesel engines work.
Stroke 4: Exhaust
After the previous stroke, the exhaust valve opens as the piston moves upward once again. With this upward movement, the burnt gases are pushed out of the cylinder and into the exhaust system. The exhaust valve closes once the spent gases are expelled. The intake valve opens again, and the four-stroke cycle repeats thousands of times per minute.
What Are the Key Components That Make a Diesel Engine Work?
Several components work together to keep the process running reliably:
- Fuel injectors: These are precisely timed nozzles that spray atomized diesel fuel into the combustion chamber at extremely high pressure (sometimes exceeding 2,000 bar in modern common-rail systems).
- Turbochargers: Many diesel engines rely on turbochargers to force more air into the cylinders, increasing power output and efficiency beyond what a naturally aspirated engine can achieve.
- Glow Plugs: These are small heating elements that are used during cold starts to warm the combustion chamber. This helps the engine ignite fuel until it reaches normal operating temperature.

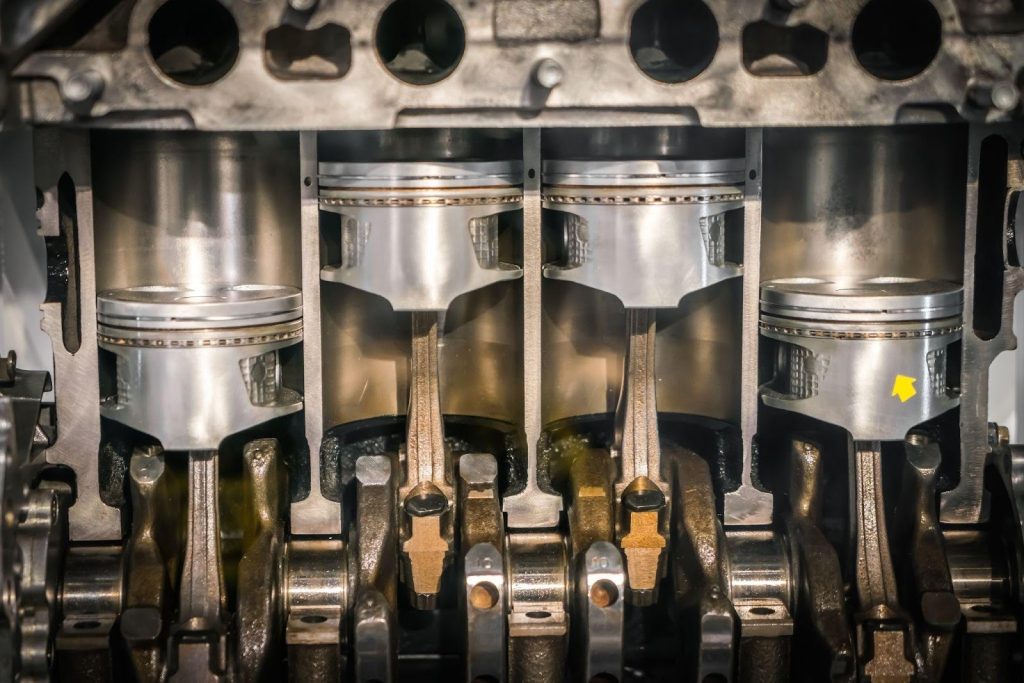

- Crankshaft: It converts the up and down motion of the pistons into the rotational motion, which finally drives the wheels or powers a machine.
Why Are Diesel Engines So Widely Used Across Industries?
Diesel engines dominate certain industries for well-established reasons.
Their high torque output makes them well-suited to heavy-duty applications such as towing, hauling, and powering large machinery. Their better fuel economy compared to petrol engines means lower running costs, which is a significant advantage for commercial fleet operators.
Diesel engines also typically have a longer lifespan. These engines are built to last, as robust construction is required to withstand high compression. A well-maintained diesel engine can run for hundreds of thousands of kilometres before it needs a major overhaul. This is an important reason that long-haul trucking, marine vessels, and rail transport rely on diesel power.
Final Thoughts
The diesel engine working process is an efficient system built on a straightforward principle: compress air enough, and it will ignite the fuel. Every phase from the intake stroke to the exhaust stroke plays a defined role in converting fuel into usable mechanical power.
For guidance on diesel engine maintenance and components, Diesel Components Inc. is here to help. We provide expert support and access to a wide range of diesel parts for commercial and heavy-duty applications.
Call us: (800) 252-6625 | (952) 890-2885
Email us: sales@dieselcomponentsinc.com
FAQs
Q1. Do diesel engines need spark plugs?
Ans. No, diesel engines do not need spark plugs for ignition. They rely on the intense heat generated by compressing air at very high ratios to spontaneously ignite the fuel. However, they also use glow plugs during cold starts to help with ignition until the engine reaches operating temperature.
Q2. Why do diesel engines produce more torque than petrol engines?
Ans. It is mainly because of their high compression ratios and the way diesel fuel burns more slowly and at higher pressure inside the cylinder. This sustained pressure pushes the piston down with a higher force over a longer period. It results in higher torque, which makes diesel engines ideal for towing and hauling heavy loads.
Q3. Can a diesel engine run on alternative fuels?
Ans. Yes, it is possible with modifications or the right blend. For example, biodiesel may be used in most diesel engines with little to no modification, especially when blended with conventional diesel. Hydrotreated vegetable oil (HVO) is another drop-in replacement. However, using fuel such as pure vegetable oil without modification can damage fuel systems over time.
Q4. Are diesel engines being phased out?
Ans. In many countries, diesel engines are facing increasing restrictions in passenger cars due to emission concerns. However, diesel engines remain indispensable for the foreseeable future in heavy transport, agriculture, marine, and industrial sectors. Meanwhile, research into cleaner diesel technology and alternative fuels also continues.
